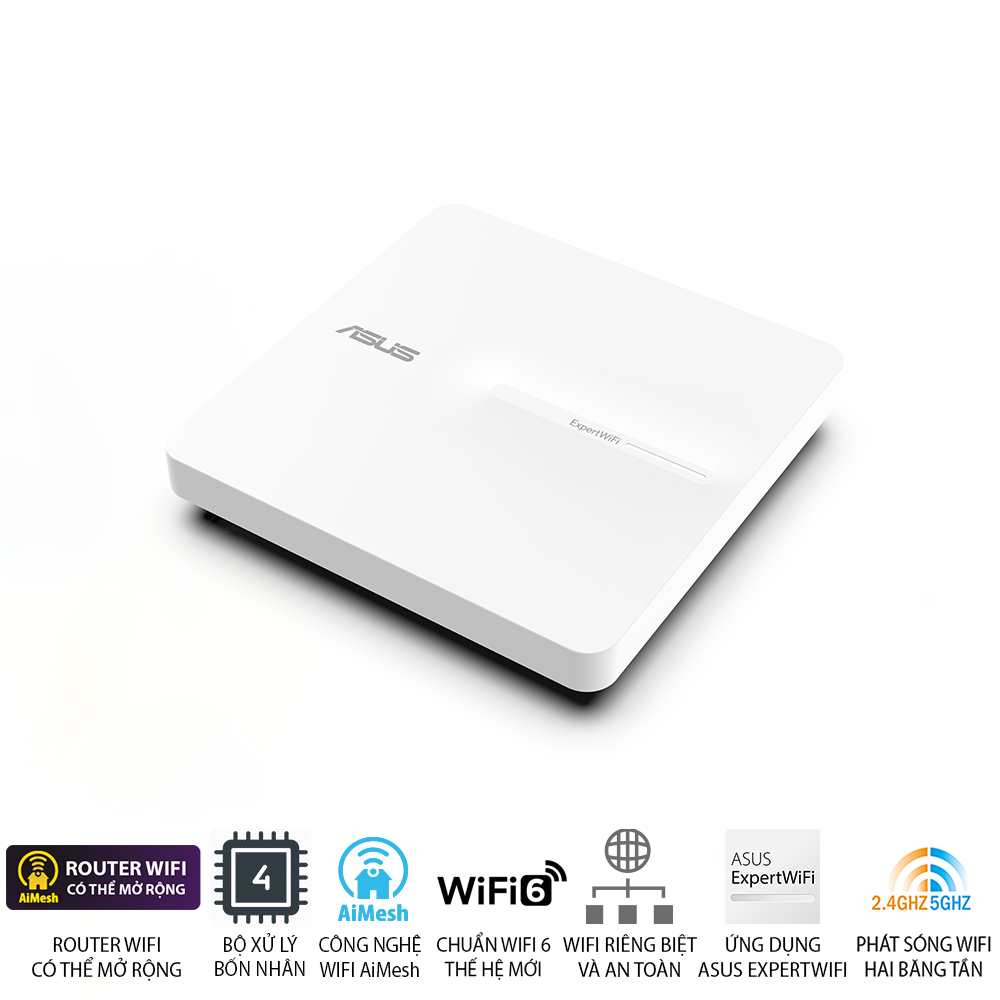

| Model | ASUS ExpertWiFi EBA63 |
|---|---|
| Network Standard | IEEE 802.11a; IEEE 802.11b; IEEE 802.11g WiFi 4 (802.11n)WiFi 5 (802.11ac)WiFi 6 (802.11ax)IPv4IPv6 |
| Product Segment | AX3000 ultimate AX performance : 2402 Mbps+ 574 Mbps |
| Data Rate | 802.11a : up to 54 Mbps 802.11b : up to 11 Mbps802.11g : up to 54 Mbps WiFi 4 (802.11n) : up to 300 MbpsWiFi 5 (802.11ac) : up to 1734 MbpsWiFi 6 (802.11ax) (2.4GHz) : up to 574 MbpsWiFi 6 (802.11ax) (5GHz) : up to 2402 Mbps |
| Antenna | Internal antenna x 4 |
| Transmit / Receive | 2.4GHz 2×2 5GHz 2×2 |
| Processor | 1.7 GHz quad-core processor |
| Memory | 256 MB Flash 512 MB RAM |
| Boosts Speed | OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal1024-QAM high data rate20/40/80/160 MHz bandwidth* The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions. |
| Operating Frequency | 2.4 GHz 5 GHz |
| Operating Mode | AiMesh Node Mode Access Point Mode |
| I/O Ports | 10/100/1000 Gigabit Ethernet Port (support PoE) x 1 |
| Buttons | Reset Button |
| LED Indicator | Power x 2 |
| Power Supply | 802.3af PoE 12 V with max. 1.5 A current DC (power adapter included) |
| Power Consumption | US: 10.0W EU: 9.1W |
| Mounting | Wall Mount Ceiling Mount |
| Package Content | ExpertWiFi EBA63 RJ-45 cablePower adapterWarranty cardQuick start guideWall-mount kit |
| Product Weight (g) | 426g |
| Product Dimentions | 160x160x42 |
| AiMesh | AiMesh AiMesh Node |
| Device Access Control | Time Scheduling RewardCustomized Internet Schedule• Maximum Device Access Control Profile :12• Maximum Device Access Control Content Filter Rule :12 |
| Dashboard | Dashboard |
| Self-Defined Network | You can create additional networks for different purposes, these networks are separate from the main network domain, to provide enhanced security, and create comprehensive network environment with customized settings. —————————— Self-Defined Network Type• Employee• Guest Network• Scheduled Network• Maximum Self-Defined Network Rule :16VLANWiFi Scheduling: One Time AccessWiFi Scheduling: Weekly ScheduleWiFi share: QR code, PDF fileAP isolate |
| Security | WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise WPSSSH |
| Traffic Control | • Real-time Traffic Monitor • Wired Traffic Monitor• Wireless Traffic Monitor |
| Wireless | UTF-8 SSID WiFi MAC Address Filter. Maximum MAC Filters : 64Wireless Scheduler |
| User Interface | WEB: ASUSWRTAPP: ASUS ExpertWiFi APP |
| Administration | Configuration Backup and RestoreDiagnosis ToolsFeedback SystemSystem LogNew Device Connect NotificationLogin CaptchaConnection DiagnosisAuto Firmware Update |
Thông số có thể thay đổi theo lô hàng. Liên hệ Ms Đức 097 3012696 để xác nhận trước khi đặt mua.
