Mô tả
Thông số kỹ thuật
| Sản phẩm | Bo mạch chủ |
|---|---|
| Tên Hãng | MSI |

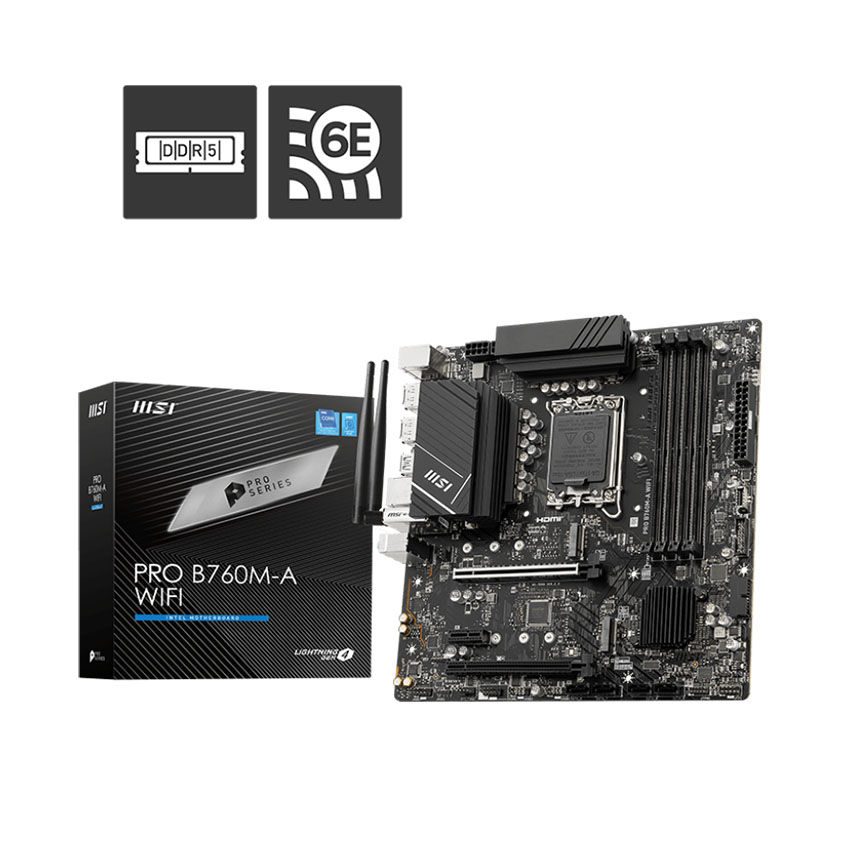

| Model | PRO B760M-A WIFI DDR5 |
| CPU hỗ trợ | Hỗ trợ cho thế hệ thứ 13 và 12 Intel® Core Socket LGA1700 |
| Chipset | Intel® B760 |
| RAM hỗ trợ | 4x DDR5, Maximum Memory Capacity 192GBMemory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHzMax. overclocking frequency:• 1DPC 1R Max speed up to 6800+ MHz• 1DPC 2R Max speed up to 6400+ MHz• 2DPC 1R Max speed up to 6000+ MHz• 2DPC 2R Max speed up to 5600+ MHz |
| Khe cắm mở rộng | 2x PCI-E x16 slot1x PCI-E x1 slotPCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Ổ cứng hỗ trợ | 2x M.2M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devicesM.2_2 Source (From Chipset) suppo |
| Cổng kết nối (Internal) | 1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x CPU Fan1x Pump Fan2x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Com Port (JCOM)2x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports4x USB 3.2 Gen1 Type A ports1x USB 3.2 Gen1 Type C ports |
| Cổng kết nối (Back Panel) | Keyboard / MouseDisplayPortUSB 3.2 Gen 1 5Gbps (Type-A)2.5G LANWi-Fi / BluetoothAudio ConnectorsUSB 2.0HDMI™USB 3.2 Gen 2 10Gbps (Type-A) |
| LAN | Realtek® RTL8125BG 2.5G LAN |
| WIRELESS / BLUETOOTH | Intel® Wi-Fi 6EThe Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4GbpsSupports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.3, FIPS, FISMA |
| Kích cỡ | mATX243.84mmx243.84mm |
Thông số có thể thay đổi theo lô hàng. Liên hệ Ms Đức 097 3012696 để xác nhận trước khi đặt mua.
