Mô tả
Thông số kỹ thuật
| Sản phẩm | Bo mạch chủ |
|---|---|
| Tên Hãng | GIGABYTE |

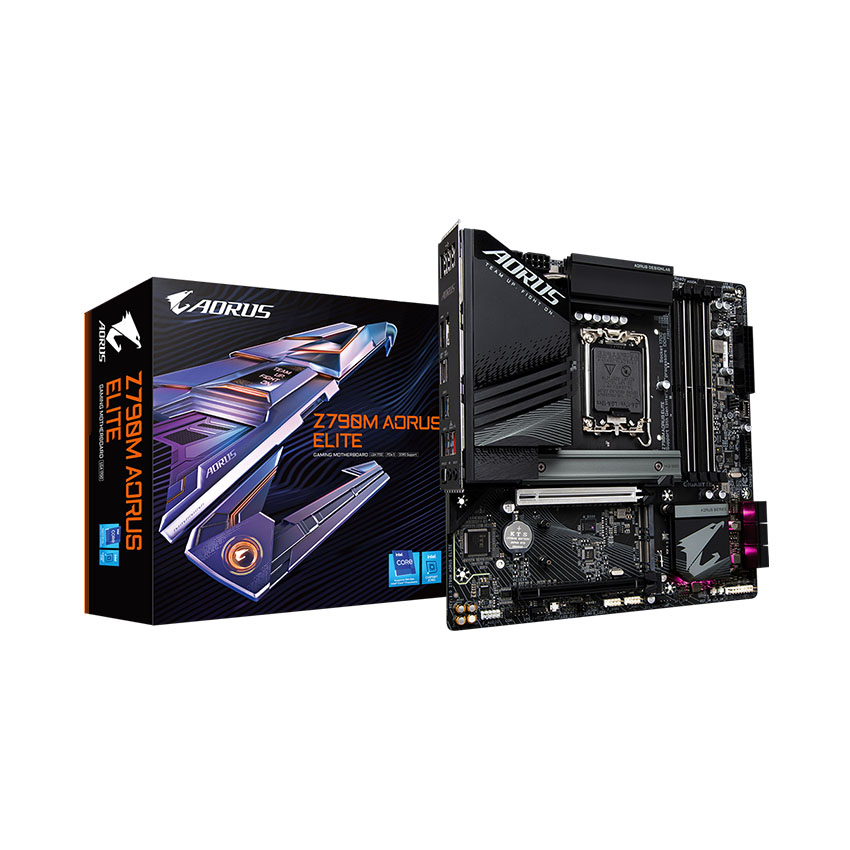

| Model | Z790M AORUS ELITE |
| CPU hỗ trợ | Hỗ trợ cho thế hệ thứ 12 và 13 Intel® Core Socket LGA1700 |
| Chipset | Z790 |
| RAM hỗ trợ | Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memo |
| Khe cắm mở rộng | CPU:1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)Support for AMD CrossFire™ technology |
| Ổ cứng hỗ trợ | CPU:1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)Chipset:1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)6 x SATA 6Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devicesRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Cổng kết nối (Internal) | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x 4-pin ATX 12V power connector1 x CPU fan header1 x water cooling CPU fan header3 x system fan headers1 x system fan/water cooling pump header2 x addressable LED strip headers2 x RGB LED strip headers3 x M.2 Socket 3 connectors6 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB Type-C® header, with USB 3.2 Gen 2 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers2 x Thunderbolt™ add-in card connectors1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)1 x serial port header1 x reset button1 x Q-Flash Plus button1 x Clear CMOS button1 x reset jumper |
| Cổng kết nối (Back Panel) | 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support1 x USB 3.2 Gen 2 Type-A port (red)4 x USB 3.2 Gen 1 ports4 x USB 2.0/1.1 ports1 x HDMI 2.0 port1 x DisplayPort1 x RJ-45 port1 x optical S/PDIF Out connector2 x audio jacks |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Kích cỡ | Micro ATX Form Factor; 24.4cm x 24.4cm |
Thông số có thể thay đổi theo lô hàng. Liên hệ Ms Đức 097 3012696 để xác nhận trước khi đặt mua.
