Mô tả
Thông số kỹ thuật
| Sản phẩm | Bo mạch chủ |
|---|---|
| Tên Hãng | GIGABYTE |

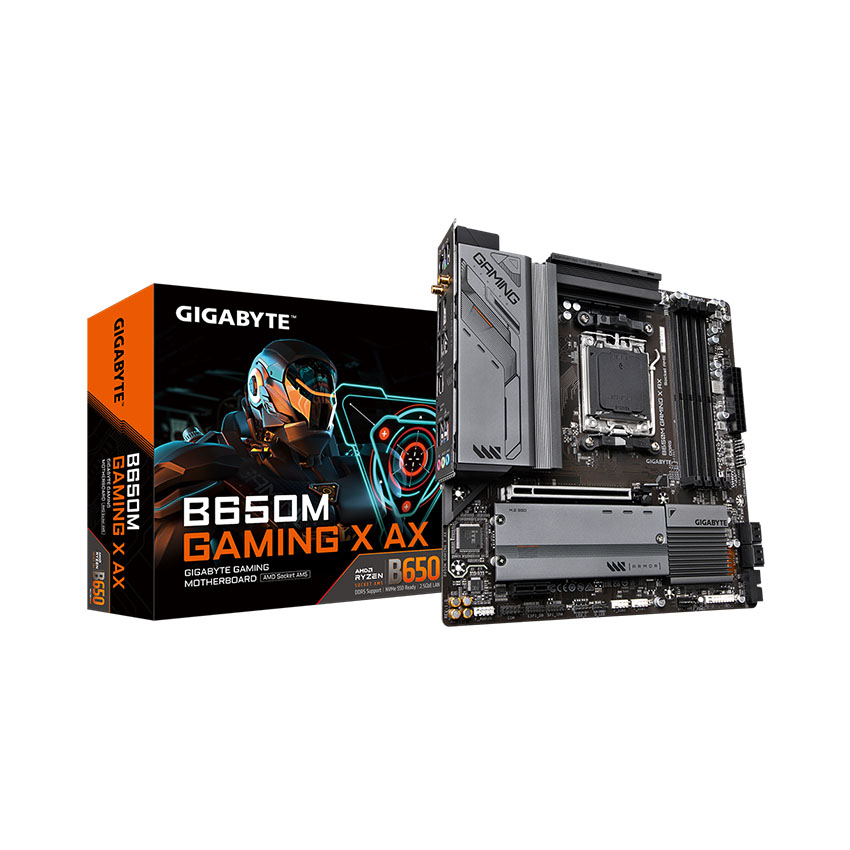

| Model | GAMING X AX DDR5 |
| CPU hỗ trợ | AMD Socket AM5 for AMD Ryzen™ 7000 Series |
| Chipset | B650 |
| RAM hỗ trợ | Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme |
| Khe cắm mở rộng | CPU:- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)Chipset:- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) |
| Ổ cứng hỗ trợ | CPU:- 2 x M.2 connectors (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support)Chipset:- 4 x SATA 6Gb/s connectorsRAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devicesRAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Cổng kết nối (Internal) | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header3 x system fan headers1 x addressable LED strip header (D_LED1)1 x addressable LED strip header (D_LED2)1 x RGB LED strip header2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB Type-C® header, with USB 3.2 Gen 2 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)1 x serial port header1 x reset button1 x reset jumper1 x Clear CMOS jumper |
| Cổng kết nối (Back Panel) | 4 x USB 2.0/1.1 ports1 x PS/2 keyboard/mouse port2 x SMA antenna connectors (2T2R)2 x DisplayPorts1 x HDMI port1 x USB 3.2 Gen 2 Type-A port (red)1 x USB Type-C® port, with USB 3.2 Gen 2 support1 x Q-Flash Plus button1 x RJ-45 port2 x USB 3.2 Gen 1 ports3 x audio jacks |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| WIRELESS/ BLUETOOTH | Realtek® Wi-Fi 6E RTL8852CE- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands- BLUETOOTH 5.3- Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
| Kích cỡ | Micro ATX Form Factor; 24.4cm x 24.4cm |
Thông số có thể thay đổi theo lô hàng. Liên hệ Ms Đức 097 3012696 để xác nhận trước khi đặt mua.
