Mô tả
Thông số kỹ thuật
| Sản phẩm | Bo mạch chủ |
|---|---|
| Tên Hãng | GIGABYTE |

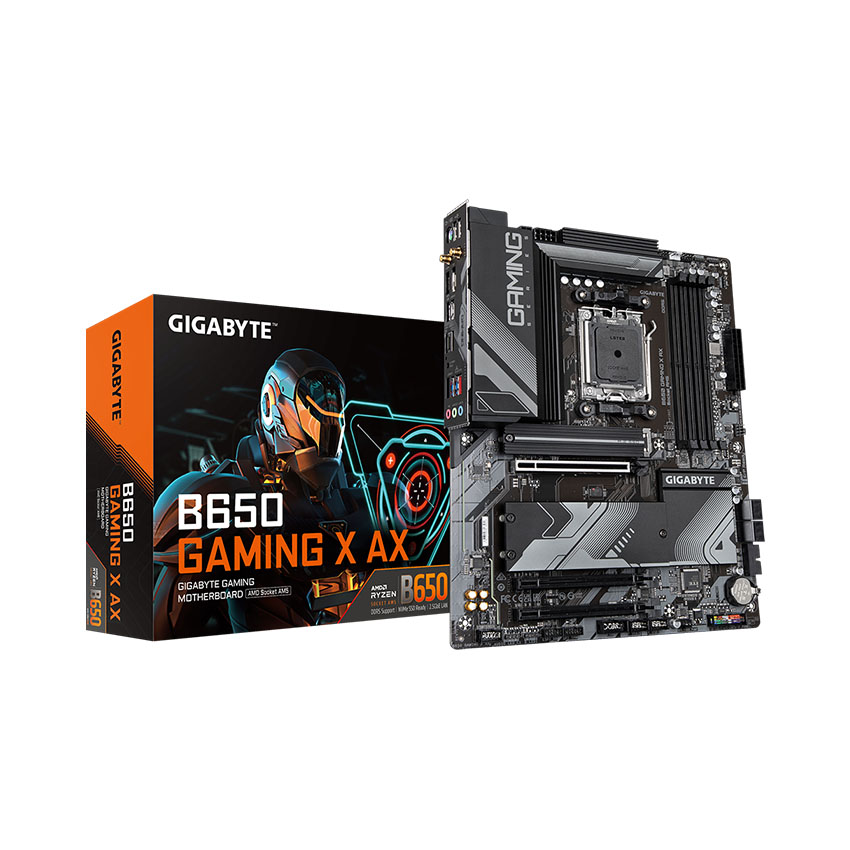

| Model | GAMING X AX DDR5 |
| CPU hỗ trợ | AMD Socket AM5 for AMD Ryzen™ 7000 Series |
| Chipset | B650 |
| RAM hỗ trợ | Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
| Khe cắm mở rộng | CPU:1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2) |
| Ổ cứng hỗ trợ | CPU:2 x M.2 connectors (Socket 3, M key, type 25110/2280 support)M2A_CPU and M2B_CPU connectors support PCIe 4.0 x4/x2 SSD (PCB rev. 1.0/1.1)M2A_CPU connector supports PCIe 5.0* x4/x2 SSD, M2B_CPU connector supports PCIe 4.0 x4/x2 SSD (PCB rev. 1.2)* Actual support may vary by CPU.Chipset:1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB)4 x SATA 6Gb/s connectorsRAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devicesRAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Cổng kết nối (Internal) | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x 4-pin ATX 12V power connector1 x CPU fan header1 x water cooling CPU fan header2 x system fan headers1 x system fan/water cooling pump header2 x addressable LED strip headers2 x RGB LED strip headers1 x CPU cooler LED strip/RGB LED strip header3 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB Type-C® header, with USB 3.2 Gen 2×2 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)1 x serial port header1 x reset button1 x reset jumper1 x Clear CMOS jumper |
| Cổng kết nối (Back Panel) | 2 x SMA antenna connectors (2T2R)1 x Q-Flash Plus button1 x DisplayPort1 x HDMI port1 x USB Type-C® port, with USB 3.2 Gen 2 support1 x USB 3.2 Gen 2 Type-A port (red)3 x USB 3.2 Gen 1 ports3 x USB 2.0/1.1 ports1 x RJ-45 port3 x audio jacks |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Kích cỡ | ATATX Form Factor; 30.5cm x 24.4cmX Form Factor; 30.5cm x 24.4cm |
Thông số có thể thay đổi theo lô hàng. Liên hệ Ms Đức 097 3012696 để xác nhận trước khi đặt mua.
