| Sản phẩm | Bo Mạch Chủ |
|---|---|
| Hãng sản xuất | ASUS |

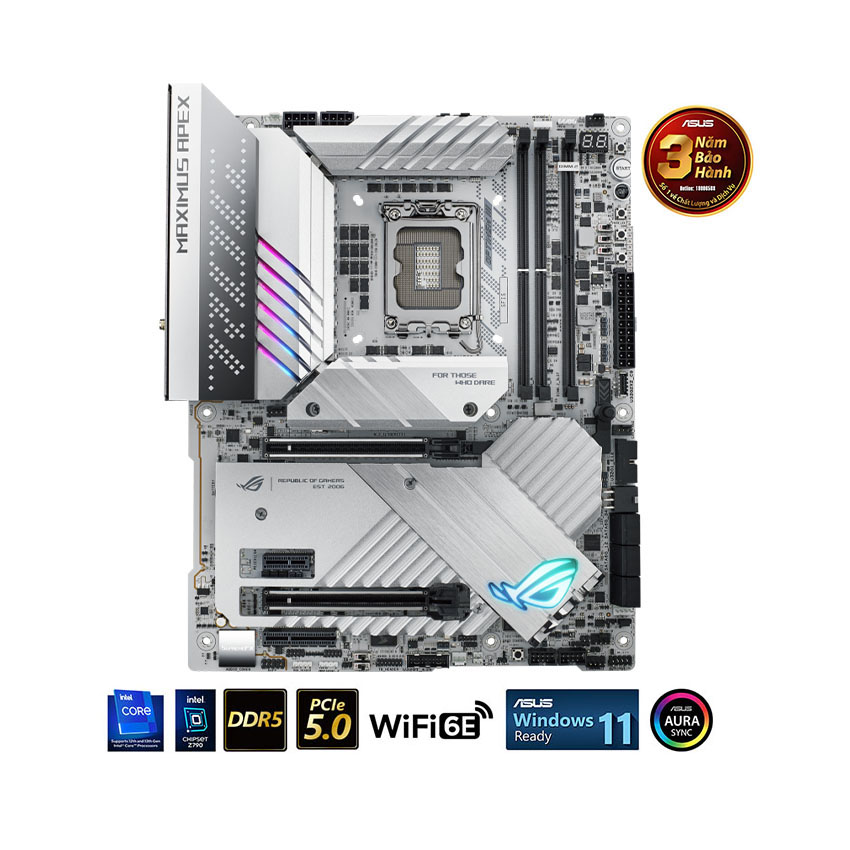

| Model | ASUS ROG MAXIMUS Z790 APEX |
| Hỗ trợ CPU | Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** |
| Chipset | Intel Z790 |
| RAM | 2 x DIMM, Max. 64GB, DDR5 8000+(OC)/7800(OC)/7600 (OC)/7467(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory* |
| Khe mở rộng | Bộ xử lý Intel ® thế hệ thứ 13 & 12 * 2 x khe cắm PCIe 5.0 x16 (hỗ trợ chế độ x16 hoặc x8/x8)** Chipset Intel ® Z790 1 x khe cắm PCIe 4.0×4 1 x khe cắm PCIe 4.0×1 * |
| Lưu trữ | 6 x SATA 3 6Gb/s, 1 x M.2 SATA/NVMe, 1 x M.2 NVMe |
| LAN | 1 x Intel® 2.5Gb EthernetASUS LANGuard |
| Không dây & Bluetooth | WiFi 802.11 a/b/g/n/ac/ax, Bluetooth 5.3 |
| USB | 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)5 x USB 3.2 Gen 2 ports (5 x Type-A)4 x USB 3.2 Gen 1 ports (4 x Type-A)Front USB (Total 9 ports)1 x USB 3.2 Gen 2×2 connector (supports USB Type-C® with up to 60W PD/QC4+)2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Âm thanh | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 |
| Cổng kết nối I / O mặt sau | 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)5 x USB 3.2 Gen 2 ports (5 x Type-A)4 x USB 3.2 Gen 1 ports (4 x Type-A)1 x Wi-Fi Module1 x Intel® 2.5Gb Ethernet port5 x Gold-plated audio jacks*1 x Optical S/PDIF out port1 x BIOS FlashBack™ button 1 x Clear CMOS button 1 x PS/2 Keyboard (purple) port1 x PS/2 Mouse (green) port |
| Cổng kết nối bên trong | Fan and Cooling related 1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header3 x 4-pin Chassis Fan headers2 x 4-pin Full Speed Fan headers1 x W_PUMP+ header1 x 2-pin Water In header1 x 2-pin Water Out header1 x 3-pin Water Flow headerPower related 1 x 24-pin Main Power connector2 x 8-pin +12V Power connector1 x 6-pin PCIe Power connectorStorage related 2 x M.2 slots (Key M) 1 x DIMM.2 slot supports 2 x M.2 slots (Key M)6 x SATA 6Gb/s portsUSB 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C® ) 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports2 x USB 2.0 headers support 4 additional USB 2.0 portsMiscellaneous1 x 80 Light Bar jumper3 x Addressable Gen 2 headers1 x Aura RGB header2 x BCLK button1 x BIOS Switch button 1 x FlexKey button 1 x Front Panel Audio header (AAFP)1 x LN2 Mode jumper 1 x Osc sense header1 x Pause switch12 x ProbeIt Measurement Points1 x ReTry button2 x RSVD switches1 x RSVD header1 x Safe Boot button1 x Slow Mode switch 1 x Start button1 x V_Latch switch1 x 10-1 pin System Panel header1 x Thunderbolt™ (USB4®) header1 x Thermal Sensor header |
| Kích thước | ATX Form Factor12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
Thông số có thể thay đổi theo lô hàng. Liên hệ Ms Đức 097 3012696 để xác nhận trước khi đặt mua.
