Mô tả
Thông số kỹ thuật
| Sản phẩm | Bo mạch chủ |
|---|---|
| Tên Hãng | Asus |

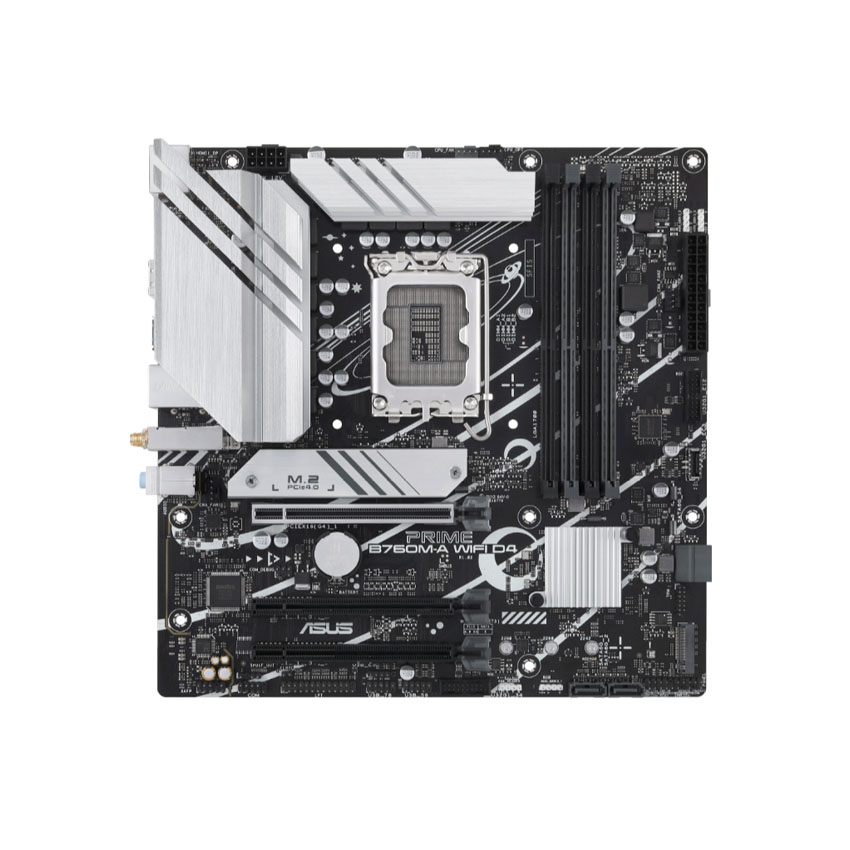

| Model | PRIME B760M-A WIFI DDR5 |
| CPU hỗ trợ | Intel |
| Chipset | B760 |
| RAM hỗ trợ | 4 x DIMM, Max. 192GB, DDR5 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory |
| Khe cắm mở rộng | Intel® 13th & 12th Gen Processors1 x PCIe 4.0 x16 slotIntel® B760 Chipset1 x PCIe 4.0 x16 slot (supports x4 mode)1 x PCIe 4.0 x16 slot (supports x1 mode) |
| Ổ cứng hỗ trợ | Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports*Intel® 13th & 12th Gen ProcessorsM.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)Intel® B760 ChipsetM.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)4 x SATA 6Gb/s ports* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| Cổng kết nối (Internal) | Fan and Cooling related1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header2 x 4-pin Chassis Fan headersPower related1 x 24-pin Main Power connector1 x 8-pin +12V Power connectorStorage related2 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports1 x USB 3.2 Gen 1 connector (supports USB Type-C®)2 x USB 2.0 headers support 4 additional USB 2.0 ports1 x USB 2.0 header supports 1 additional USB 2.0 portMiscellaneous3 x Addressable Gen 2 headers1 x Aura RGB header1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (AAFP)1 x LPT header1 x S/PDIF Out header1 x SPI TPM header (14-1pin)1 x 20-3 pin System Panel header with Chassis intrude function |
| Cổng kết nối (Back Panel) | 2 x USB 3.2 Gen 2 ports (2 x Type-A )4 x USB 2.0 ports (4 x Type-A)1 x DisplayPort2 x HDMI® ports1 x Wi-Fi Module1 x Realtek 2.5Gb Ethernet port3 x Audio jacks1 x PS/2 Keyboard/Mouse combo port |
| LAN / Wireless | 1 x Realtek 2.5Gb Ethernet Wi-Fi 62×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)Supports 2.4/5GHz frequency bandBluetooth v5.2 |
| Kích cỡ | mATX Form Factor9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
Thông số có thể thay đổi theo lô hàng. Liên hệ Ms Đức 097 3012696 để xác nhận trước khi đặt mua.
