Mô tả
Thông số kỹ thuật

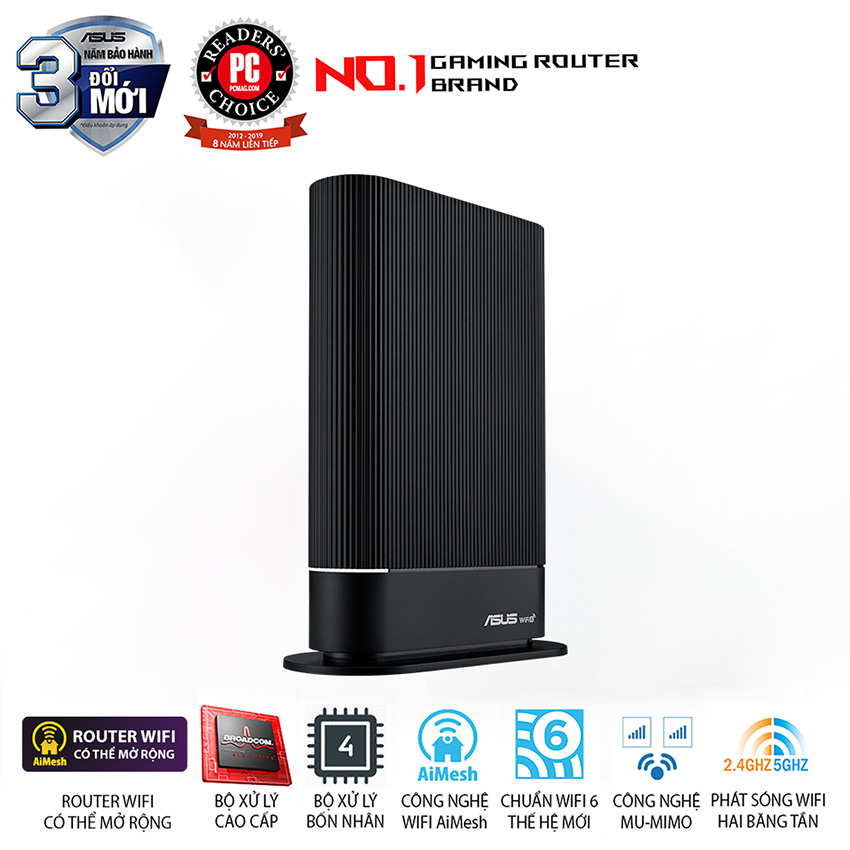

| Tên Router | RT-AX59U |
|---|---|
| Tiêu chuẩn kết nối | IEEE 802.11aIEEE 802.11bIEEE 802.11gWiFi 4 (802.11n)WiFi 5 (802.11ac)WiFi 6 (802.11ax)IPv4IPv6 |
| Phân khúc sản phẩm | AX4200 ultimate AX performance: 574+3603 Mbps |
| Tỉ lệ dữ liệu Wifi | 802.11a : up to 54 Mbps802.11b : up to 11 Mbps802.11g : up to 54 MbpsWiFi 4 (802.11n) : up to 450 MbpsWiFi 4 (802.11n) (256QAM) : up to 600 MbpsWiFi 5 (802.11ac) : up to 2600 MbpsWiFi 6 (802.11ax) (2.4GHz) : up to 574 MbpsWiFi 6 (802.11ax) (5GHz) : up to 3603 Mbps |
| Antenna | Internal antenna x 5 |
| Truyền / Nhận | MIMO technology2.4GHz 2×25GHz 3×3 |
| CPU | 2.0GHz quad-core 64bit processor |
| Bộ nhớ | 128 MB Flash256 MB RAM |
| Tốc độ | OFDMA (Orthogonal Frequency Division Multiple Access)Beamforming: standard-based and universal1024-QAM high data rate20/40/80/160 MHz bandwidth |
| Băng tần | 2.4G Hz / 5 GHz |
| Chế độ hoạt động | Router(AiMesh router), AiMesh node, Access point, Repeater, Media bridge |
| I/O Ports | RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3USB 3.2 Gen 1 x 1, USB 2.0 x 1 |
| Nút sử dụng | WPS Button, Reset Button, Power Switch |
| LED | Power & Status Combo LED x 1 |
| Nguồn cấp | AC Input : 110V~240V(50~60Hz)DC Output : 12 V with max. 2.5 A current |
| Package Content | RT-AX59U RouterRJ-45 cablePower adapterWarranty cardQuick start guide |
| Product Weight (g) | 476 g |
| Kích thước sản phẩm | 131 x 37.5 x 200 mm (WxDxH) |
| AiMesh | AiMesh• Primary AiMesh Router• AiMesh Node |
| Parental Control | “Allow you to block access to unwanted websites and apps.”Safe BrowsingCustomized Internet Schedule• Maximum Parental Control Profile : 64• Maximum Parental Control Content Cilter Rule : 64 |
| Guest Network | “The Guest Network provides Internet connection for guests but restricts access to your local network.”• Maximum Guest Network Rule : 2.4 GHz x 3, 5 GHz x 3Guest Network Connection Time LimitGuest Network Encryption : Open system, WPA/WPA2/WPA3-Personal, WPS |
| Security | AiProtectionWPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS supportWPSLet’s EncryptDNS-over-TLSSSHSecurity ScanFirewall• Maximum Firewall Keyword Filter : 64• Maximum Firewall Network Service Filter : 32• Maximum Firewall URL Filter : 64 |
| AiProtection | • Router Security Assessment• Malicious Site Blocking• Two-Way IPS• Infected Device Prevention and Blocking |
| VPN | Instant GuardVPN Client L2TPVPN Client Open VPNVPN Client PPTPVPN Client WireGuardVPN Server IPSecVPN Server Open VPNVPN Server PPTPVPN Server WireGuardVPN Fusion |
| Traffic Control | Adaptive QoS• Bandwidth Monitor• Bandwidth Limiter— Maximum Bandwidth Limiter Rule : 32Traditional QoS— Maximum Traditional QoS Rule : 32Traffic Monitor• Real-time Traffic Monitor• Wired Traffic Monitor• Wireless Traffic MonitorTraffic Analyzer• Traffic Analysis Period : Daily, Weekly, Monthly• Website History |
| WAN | Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IPDual WAN3G / 4G LTE donglePort forwarding• Maximum Port Forwarding Rule : 64Port triggering• Maximum Port Triggering Rule : 32DMZDDNSNAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Passthrough, PPPoE relay |
| LAN | DHCP ServerIGMP SnoopingIPTVLAN Link AggregationManually Assign IP Address• Maximum Manually Assign IP Address Rule : 64Wake on LAN (WOL) |
| Wireless | MU-MIMOUTF-8 SSIDWiFi MAC Address Filter• Maximum MAC Filters : 64Wireless SchedulerAirtime FairnessRADIUS ClientUniversal BeamformingExplicit Beamforming |
| USB application | File System : HFS+, NTFS, vFAT, ext2, ext3, ext4Safely Remove DiskAiCloudDownload MasterAiDiskMedia ServerSamba ServerFTP ServerShared Folder Privileges |
| Administration | Configuration Backup and RestoreDiagnosis toolsFeedback SystemSystem LogNew Device Connect NotificationLogin CaptchaConnection DiagnosisAuto Firmware Update |
Thông số có thể thay đổi theo lô hàng. Liên hệ Ms Đức 097 3012696 để xác nhận trước khi đặt mua.
