Mô tả
Thông số kỹ thuật
| Xuất xứ | Ruijie |
|---|---|
| Bảo hành: | 36 tháng |
| LOẠI AP | Trong nhà |
| Tiêu chuẩn WIFI | 802.11ax Wifi 6 |
| Đặc tính | Mesh Wifi, MU-MIMo, PoE Power, Wifi Marketting |
| Antenna | Internal |
| Operating Mode | AS Controller, Controller Base |

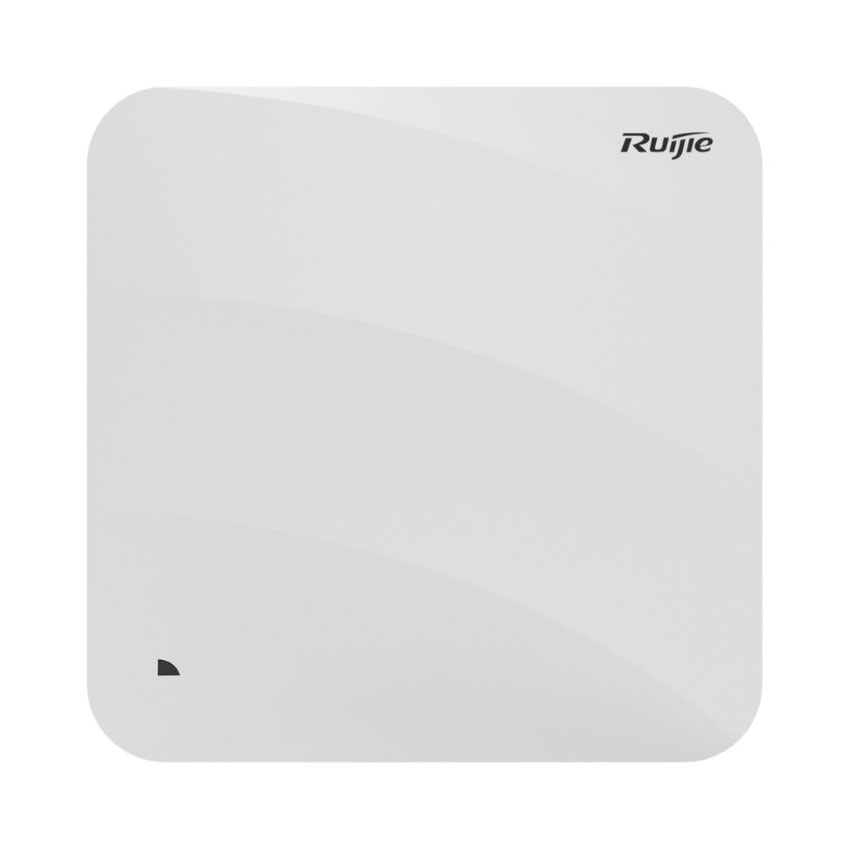

| Sản phẩm | RG-AP810-L |
| Thiết kế Radio | Dual-radioRadio 1: 2.4 GHz, two spatial streams, 2×2 MU-MIMORadio 2: 5 GHz, two spatial streams, 2×2 MU-MIMO |
| Tần số hoạt | Radio 1, 802.11b/g/n/ax:● 2.400 GHz to 2.4835 GHz, ISMRadio 2, 802.11a/n/ac/ax: ● 5.150 GHz to 5.250 GHz, U-NII-1● 5.250 GHz to 5.350 GHz, U-NII-2A● 5.470 GHz to 5.725 GHz, U-NII-2C● 5.725 GHz to 5.850 GHz, U-NII-3/ISM |
| Tốc độ dữ liệu | Combined peak data rate: 1.775 Gbps2.4 GHz radio, 574 Mbps● Two spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate to individual 2SS HE40 802.11ax client devices (max.)● Two spatial stream Single User (SU) MIMO for up to 287 Mbps wireless data rate to individual 2SS HE20 802.11ax client devices (typical)5 GHz radio, 1.2Gbps● Two spatial stream Single User (SU) MIMO for up to 1.2 Gbps wireless data rate to 2SS HE80 802.11ax client devices (typical) |
| Loại Ăn-ten | Built-in omnidirectional antennas |
| Ăn-ten | 2.8 dBi in 2.4 GHz and 3.6 dBi in 5 GHz |
| Cổng dịch vụ | Uplink: 1 x 10/100/1000Base-T RJ45 Ethernet port with auto-negotiation● Compliance with IEEE 802.3af standard (PoE)● Auto MDI/MDIX crossover● PoE-PD: 54 V DC (nominal) 802.3af/at/bt (Class 3 or higher)● 802.3az EEE |
| Trạng thái đèn LED | 1 x multi-color system status LED |
| Nguồn | ● 48 V DC/0.6 A power input over DC connector: The DC connector accepts 2.1 mm/5.5 mm center-positive circular plug. A DC power adapter needs to be purchased separately.● PoE input over PoE-in port: The power source equipment (PSE) complies with IEEE 802.3af/at/bt standard (PoE/PoE+/PoE++).Note:● If both DC power and PoE are available, DC power is preferred. |
| Tiêu thị điện | 12.95 W● DC powered: 12.95 W● PoE powered (802.3af): 12.95 W● PoE+ powered (802.3at): 12.95 W● PoE++ powered (802.3bt): 12.95 W● Idle mode: 6 W |
| Chế độ cài đặt | Ceiling/wall-mountable |
| Kích thước | Unit dimensions: 220 mm x 220 mm x 49 mm (8.7 in x 8.7 in x 2.0 in)Shipping dimensions: 507 mm x 319 mm x 278 mm (20.0 in x 12.6 in x 11.0 in) |
| Trọng lượng | Unit weight:Device: 0.6 kg (1.33 lbs)Mounting bracket: 0.07 kg (0.15 lbs)Shipping weight: 1.04 kg (2.29 lbs) |
| MTBF | 200,000 hours (22 years) |
| Nhiệt độ | -10°C to 50°C |
| Humidity | 5% to 95% |
Thông số có thể thay đổi theo lô hàng. Liên hệ Ms Đức 097 3012696 để xác nhận trước khi đặt mua.
